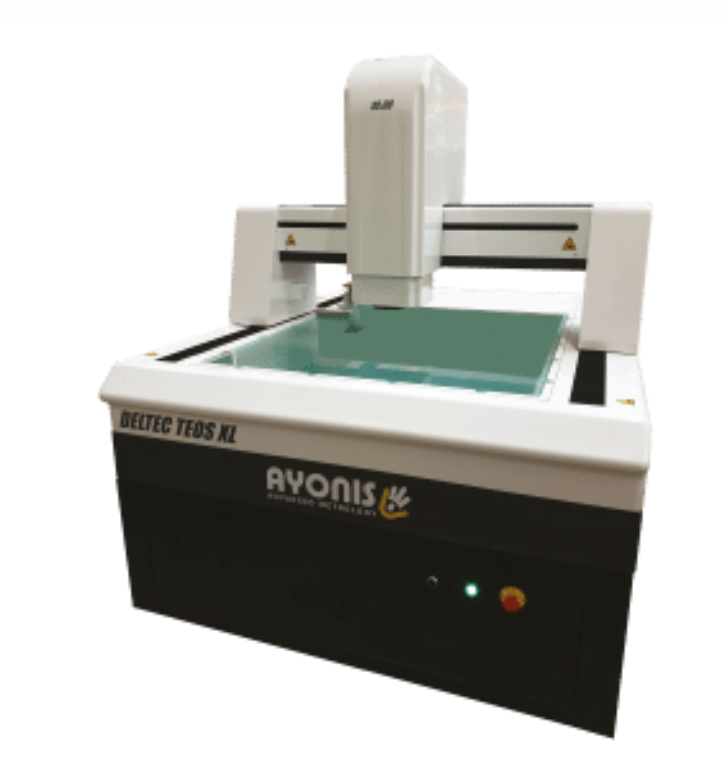

DELTEC TEOS XL - Large Capacity CMM

---

This machine combines all the tools required for your dimensional metrology needs (software package and 3D structure).



Compatible with all types of parts (automotive, mechanical, electronics, pharmaceutical, etc.) and materials (metal, plastic, rubber, glass, etc.).



Suitable for all types of inspections: first article, in-process, laboratory, incoming, outgoing, and during production.



Ability to manage multiple sensors: vision, probe, confocal.



Automatic inspection of single or multiple parts.



FOTOS: granite structure, confocal sensor, multisensor head, stylus changer, dual-screen workstation, DELTEC TEOS XL, automated 3D multisensor measurement system.







Machine Characteristics

• Mobile gantry structure
  Base and gantry in solid granite
  Linear roller guides
  Ball screws and DC motors



• Measurement capacities (X, Y, Z):
• 600 x 800 x 200
• 800 x 1000 x 200
• 1200 x 1000 x 200



• Load capacity: 20 kg
  Encoder resolution: 0.5 microns
  X, Y, Z speed: up to 200 m/s max



Measurement Uncertainties (2σ)

• XY E2: (± 4 + 5L/1000) microns (vision, probe)

• Z E1: (± 4 + 5L/1000) microns (vision)

• Z E1: (± 2.4 + 5L/1000) microns (probe)



•

 Vision System:



• 1.3 MPX high-definition black & white digital camera

• Programmable lighting systems:
• 8-sector episcopic white LED
• Coaxial LED
• Collimated green diascopic LED
• Motorized zoom with 6 indexed positions

• Laser pointer-assisted positioning

• Magnifications x30 to x200 (reference full-field display on a 24” screen)
•







---
