Low Cyclic Load Electrodynamic Testing Machine



---





The LC series low-cycle electrodynamic testing machines are designed for testing and evaluating materials, components, and structures in laboratories, research centers, and industrial applications.



These machines differ from high-cycle electrodynamic systems in that they operate at lower frequencies and perform fewer loading cycles, applying tension, compression, and torsion under various temperature conditions.



All modifications of the low-cycle electrodynamic testing machines we manufacture are developed as tools for investigating the behavior of materials and components under a wide range of loads and conditions.



They are essential for numerous sectors, including engineering, materials research, industry, and construction.



LC Series Features:



1. • Robust bench-mounted or floor-standing design with adjustable crosshead, providing high stiffness, mechanical strength, and durability, ensuring 100% repeatability of results, even in compact installations, with oil-free and quiet drive technology
   • Reliable long-term performance at frequencies up to 6 Hz at full load
   • Digitally feedback-controlled cooling system for the linear actuator
   • Mechanical or fully electric crosshead adjustment, including process monitoring
   • Integrated T-slot plate with a special suspension system capable of absorbing up to 95% of machine vibrations
   • Guaranteed system alignment in accordance with ASTM E1012
   • Expandable with a torsion system depending on frequency and number of cycles
   • Test control via a precision actuator with force and position closed-loop control
   • Test & Motion software providing complete evaluation and control for axial, torsional, or combined testing
   • Force sensors operating in accuracy classes according to EN ISO 7500-1 and ASTM E4, with linearization capability
   • Compliance with all relevant CE directives for machinery and equipment, in accordance with EN ISO 13850:2015 safety functions
   • Controlled by EDCi series measurement and control electronics with a sampling rate of 2.5 or 10 kHz
   • Integration of special grips for axial-torsional testing or various fixtures according to standards
   • High-precision testing with temperature chambers or high-temperature furnaces







---

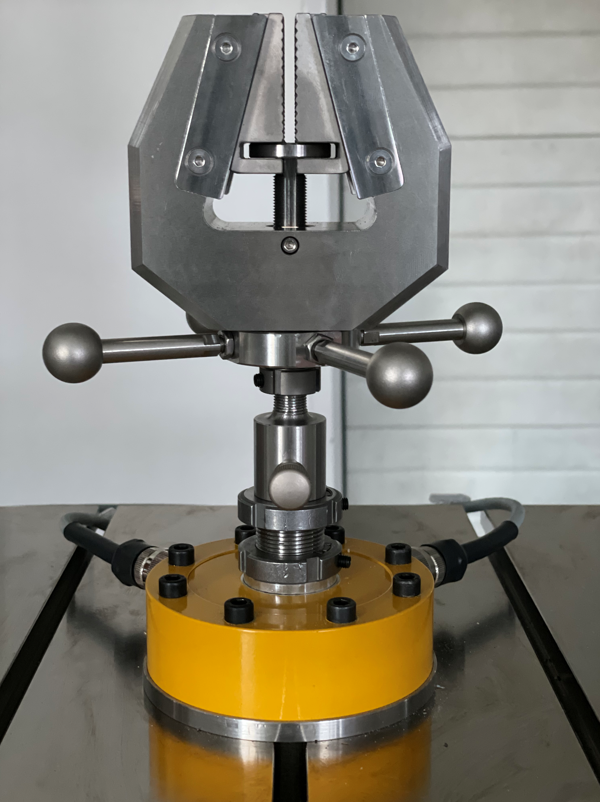

Testing with Various Accessories and Gripping Fixtures:

Various types of gripping fixtures and testing tools for clamping and dynamic testing of metals, carbon materials, plastics, laminates, and more, suitable for tensile, compression, and bending tests in accordance with standards such as EN 6892-1, ISO 12106, ASTM E606, DIN 50100, ASTM E399, ASTM E647, ASTM E466, among others.

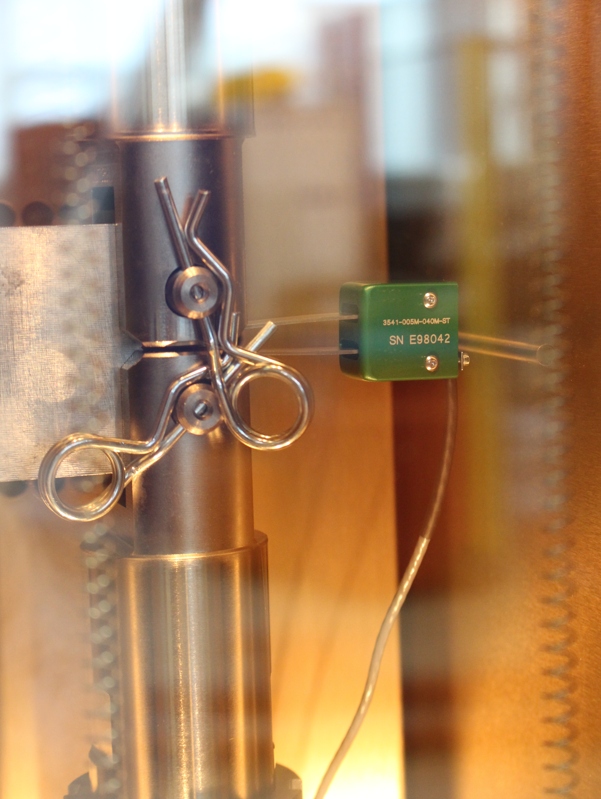

Testing with Extensometers and Measurement Sensors:

Tensile testing with extensometers in accordance with EN ISO 9513, EN 6892-1, ISO 12106, ASTM E606, DIN 50100, ASTM E399, ASTM E647, ASTM E466, and other relevant standards.

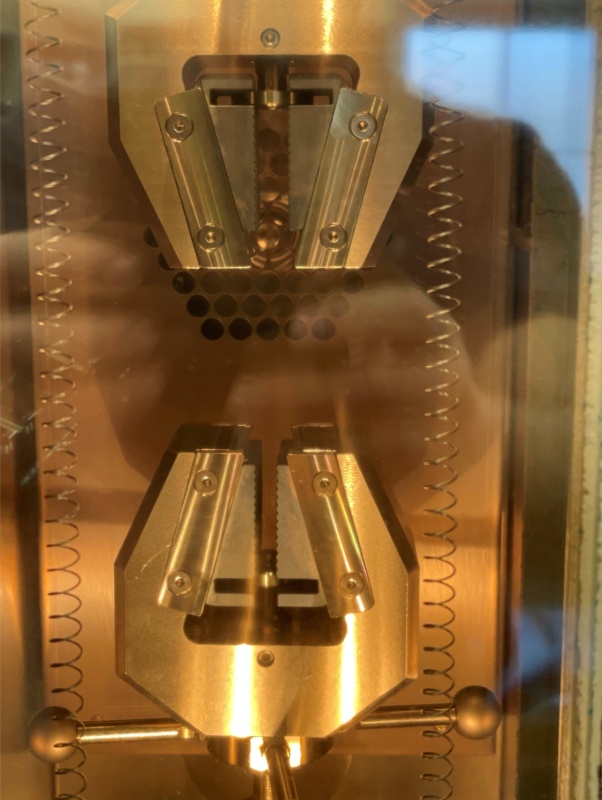

Testing with High-Temperature Furnaces and Temperature Chambers:

Dynamic tensile and compression testing at elevated temperatures in accordance with ISO 6892-2 Method A1, EN 6892-1, ISO 12106, ASTM E606, DIN 50100, ASTM E399, ASTM E647, ASTM E466, and other applicable standards.
