R250 - Laboratory Roundness Tester

---

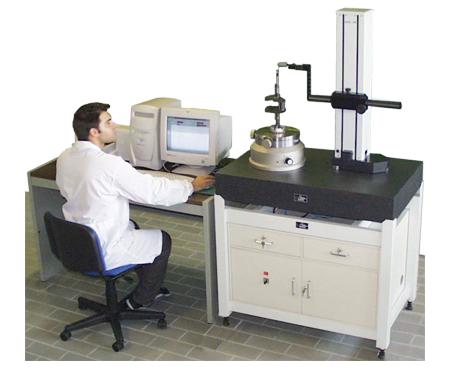

The R250 was designed to meet the need for characterizing parts with circular and even complex geometries with maximum precision, and it is the ideal instrument for addressing multiple measurement requirements in the mechanical, automotive, aerospace, and machine manufacturing industries. Thanks to its solid structure, consisting of a base made of granite and a pneumatically supported plate, it can accurately measure even heavy workpieces. The device is supported by Circom software, which was designed to be extremely easy to use, enabling operator training in a short period of time and reducing training and testing costs.



The software allows the analysis of the following geometric tolerances: roundness, straightness, cylindricity, taper, cone form, concentricity, parallelism, coaxiality, total runout, and thickness variation.

For complex surfaces where gaps are present, Circom is capable of automatically removing them, or the operator can intervene manually by eliminating inconsistent profile sections. Additional integration packages can be added to the basic application, such as harmonic analysis, which—through FFT algorithms—allows the analysis of each sinusoidal component of the measured profile, essential for applications involving bearings.





---
