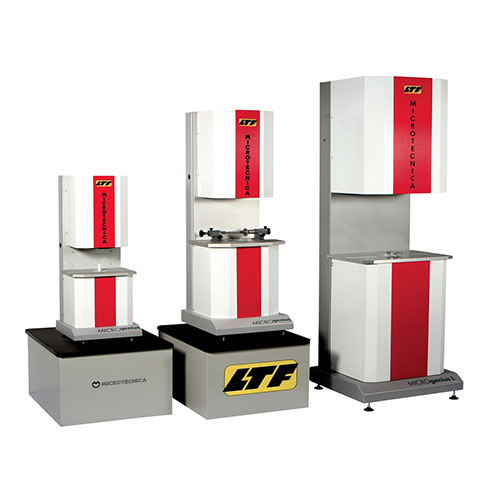

MICROGENIUS - 2D Optical System

.

MICRO is primarily designed for two-dimensional inspection of components used in the aerospace, automotive, textile machinery, electrical-electronic, rubber industries, and in all cases where fast and precise inspection is required. It is also used for batch production inspection. Its modular design allows the machine to adapt its functions to the specific needs of the user. This can be achieved by customizing the system through the following main components:

Features

Latest-generation multifunction measuring system with a dimmable 7” color LCD touchscreen, featuring intuitive graphical and alphanumeric readout for fast and easy processing of measurements and advanced geometric calculations.
Motorized vertical travel carriage.
Fast sliding movements on pneumatic bearings, ensuring greater precision and reliability.
Optimized constant measuring force, improving measurement accuracy when using extended probes.
Automatic stand-by mode for energy saving.
USB / LAN ports for importing or exporting data and measurement programs.
Automatic software updates via USB flash drive.
RS232 port for connection to printers or other external devices.
Calibration master piece including a 5 mm gauge block supplied as standard.
