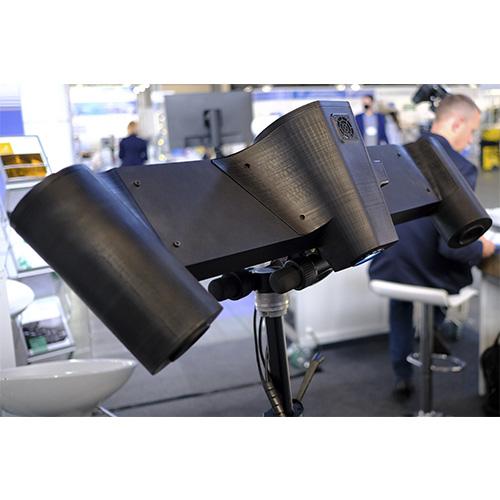

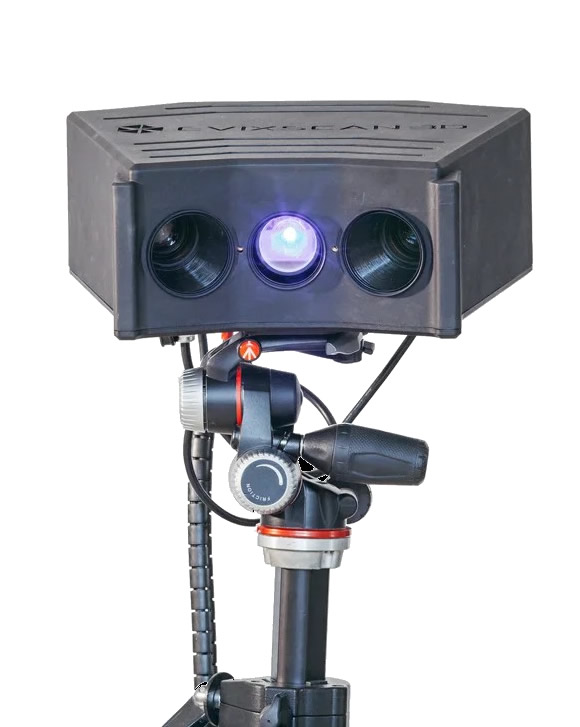

eviXscan 3D WideRange – Large Field 3D Scanner

---



High-Precision 3D Scanning of Large Objects





The eviXscan wide-range 3D scanner enables high-precision scanning of large objects in challenging lighting conditions thanks to high-intensity illumination and polarizing filters.



.

Useful for: non-contact quality inspection, reverse engineering, and rapid prototyping.





Features:



• Light source: Blue LED

• Cameras: 2 × 12 MPix

• Scanning time: 5 seconds

• Measurement range: 600 × 420 × 150 mm

• Point density: up to 49 pt/mm²

• Software: eviXscan 3D Suite

• Export formats: STL, PLY, OBJ, ASC, BIN

• Computer requirements: Windows 7 (64-bit), 16 GB RAM, Intel i5 CPU

• Computer connection: USB 3.0 and HDMI
