Grips and Fixtures for Tensile, Compression

and Torsion Testing (MARK-10)

---







Mark-10 Grips and Accessories are an integral part of testing systems, designed for a wide range of tension, compression, and torque applications.



These grips and accessories can be mounted to Mark-10 force gauges, torque gauges, force sensors, load cells, and test stands, providing versatile solutions for a broad range of testing requirements.







 Let's Review Some Popular Models...







1. Tensile / Pull Grips

This category includes various grip types designed for tensile testing of cables, terminals, tapes, films, electronic components, textiles, and other materials.

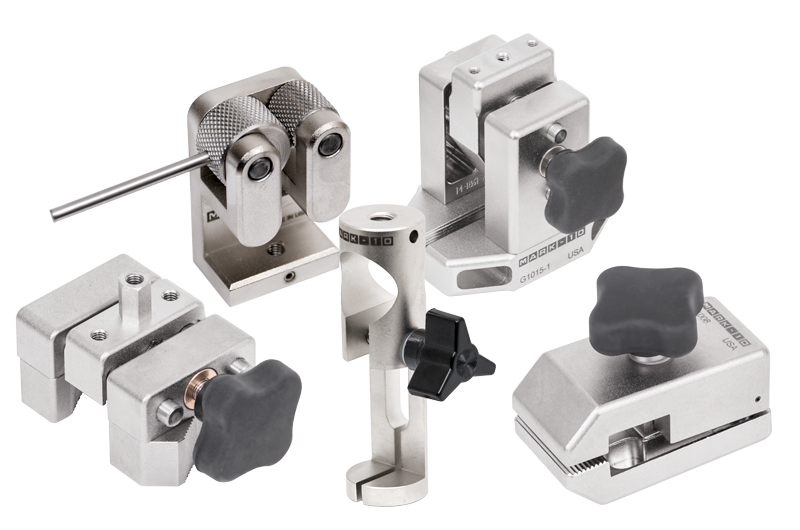

Wedge Grips (G1061 Series):

• Self-tightening wedge grips
• High-capacity design up to 2,000 lbF



Mini Wedge Grip (G1062):

• Designed for low-force applications
• Capacity up to 100 lbF



Mini Component Grip (G1003):

• Ideal for small or hard-to-access components



Multi-Jaw Grip (G1056):

• Suitable for round, irregular, or complex-shaped specimens



Clevis Grips (G1077, G1090):

• Ideal for ergonomic testing and spring testing applications



Ribbon Wrap Grip (G1111):

• Designed for textiles, ribbons, straps, and industrial webbing
•

2. Film, Paper, and Packaging Grips

Accessories designed for:

• Peel testing
• Thin film tensile testing
• Coefficient of friction (COF) testing
• Adhesion force measurement



Featured Models:



G1008, G1015 (1, 2, 3):

• Mechanical grips for film and paper testing



G1046:

• Sealed pneumatic grip for seal strength and elongation testing



90° Peel Fixture (G1109):

• Maintains the standard 90-degree peel angle during adhesive testing



Loop Tack Fixture (G1098):

• Designed for pressure-sensitive adhesive testing



Coefficient of Friction Fixture (G1086):

• Complies with ASTM D1894





3. Carton, Rigid Packaging, and Die-Cut Fixtures



Accessories designed for carton opening and bending applications.



Featured Models



Score Bending Fixture (G1071):

• Performs 90° carton bend testing



Opening Force Fixture (G1072):

• Measures opening force in folded carton packaging

• Score bending fixture (G1071): Para doblar cartón a 90°.
• Opening force fixture (G1072): Para medir fuerza de apertura en empaques tipo “folded carton”.



4. Bottle and Cap Testing Fixtures



• Cork Pull Fixture (G1105):

  • Designed for cork extraction testing
  • Complies with ISO 9727
  •

  Flip Cap Pull Grip (G1104):

  • Measures the force required to open flip-top caps
  •

  Universal Bottle Grip (G1023):

  • Secures bottles during torque and axial load testing
•

5. Vise Grips

Parallel-opening grips designed for tensile and compression testing.



G1013:

• Standard vise grip
•

G1101 / G1100:

• Medium and large versions
• Aluminum body with hardened jaws
•

G1106 / G1074:

• Self-centering and standard vise grips with universal mounting



6. Wire, Rope, Yarn, and Terminal Grips



A complete range of grips designed to securely hold cables, wires, filaments, ropes, and terminals.



Wire Terminal Grips (G1001 Series):

• Designed for wire terminals and crimped connections
•

Turret-Style Grips (G1076, G1093):

• Indexed wheel with multiple groove sizes
•

Dual Roller Grips (G1002, G1085):

• Serrated rollers with cam-lock mechanism
•

Filament Grip (G1078):

• Designed for very thin filaments
•

Wire and Rope Grips:

• G1102, G1103, G1092
•

High-Capacity Eccentric Roller Grip (G1094):

• Capacity up to 2,000 lbF



7. Compression and Puncture Fixtures

Accessories designed for compression, penetration, and puncture testing.



Compression Plates

• G1009

• G1009-1

• G1087

• G1087-1

• G1123 Self-Aligning Compression Plate

•

Puncture Fixtures



G1110

• Film puncture fixture

• Designed to meet industry standards

•

G1099

• Puncture fixture for gypsum and drywall testing

Food Testing Probes



Magness-Taylor Probes (G1122)

• Used for fruit firmness and food texture testing



8. Bending Fixtures (3-Point and 4-Point)

Models:

• G1095
• G1096
• G1097



These fixtures feature interchangeable rollers and are suitable for testing plastics, metals, ceramics, composites, and other materials.



9. Torque Fixtures



Accessories designed for torque testing of caps, closures, lids, and round components.



Models

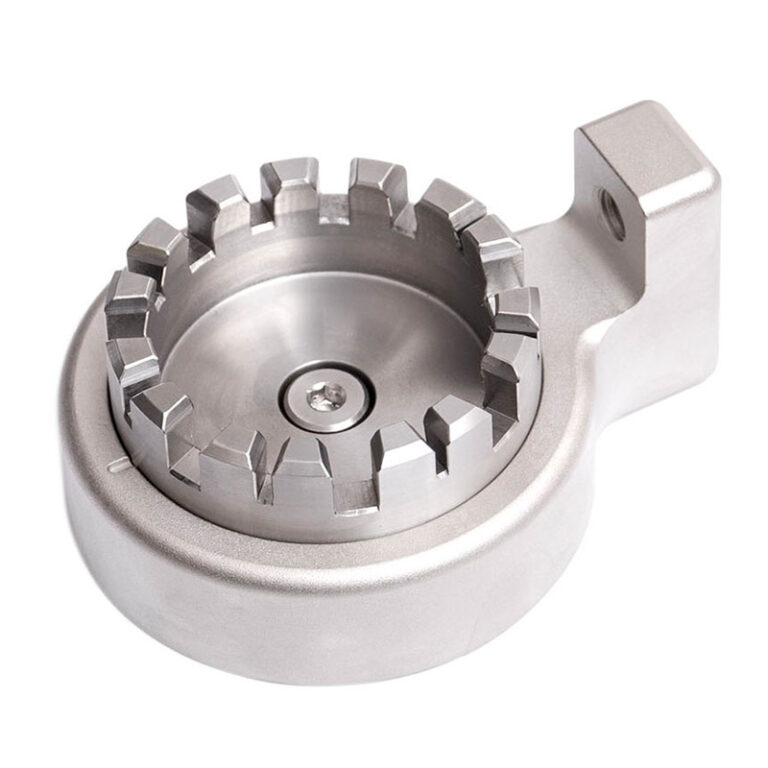

• Universal V-Jaw Grip (G1053)
• Universal Cap Grip (G1058)
• Jacobs Chuck Grips (G1022 Series)



10. Hooks, Tips, and Basic Adapters

A wide range of accessories for general-purpose force testing applications.



Hooks

• G1028

• G1038

• G1035

• G1042

•

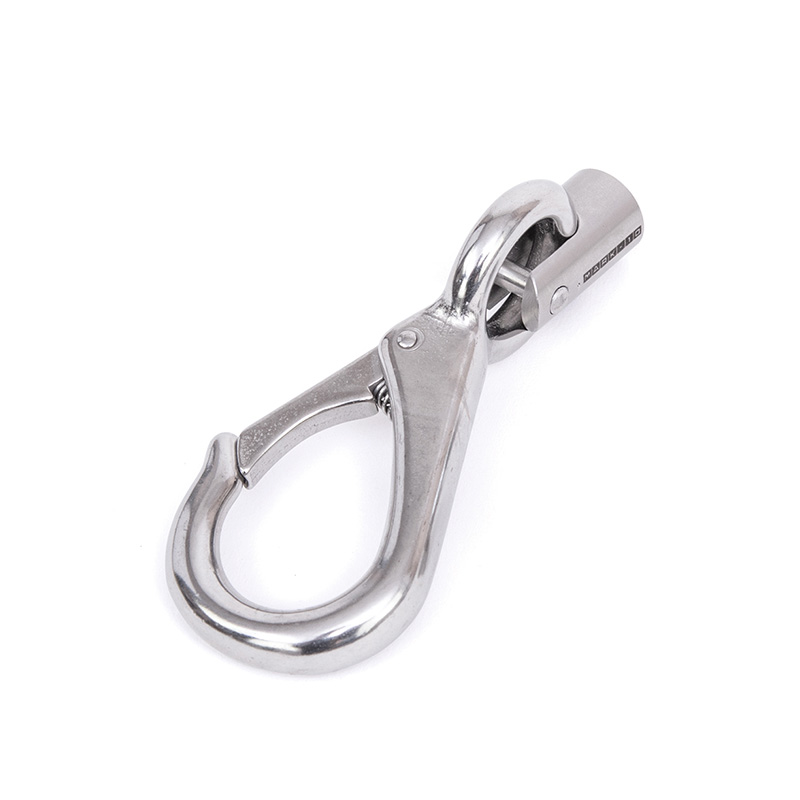

Safety Snap Hook (G1107)

Test Tips

• Flat Tips

• Chisel Tips

• Cone Tips

• V-Groove Compression Tips

•

Models include:

• G1029

• G1036

• G1025

• G1032

•

Additional Accessories

• Extension rods

• Swivel adapters

• Thread adapters

• Couplings

• Multiple thread sizes and load capacities available







---

   (Agrandar)
