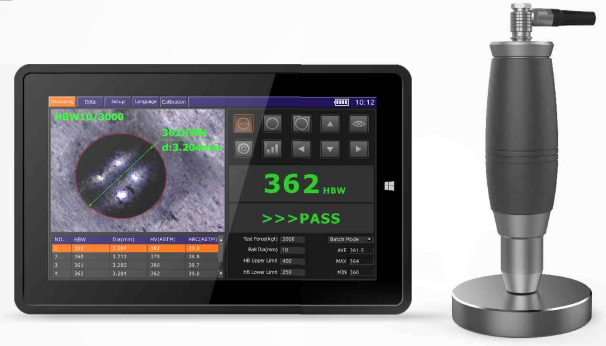

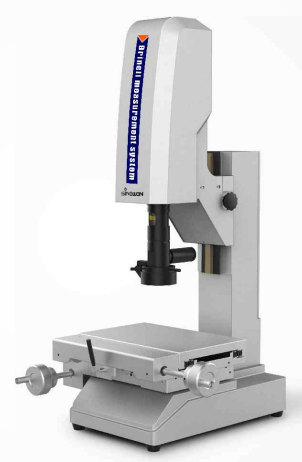

Brinell Hardness tester measurement System applies advanced machine vision technology with USB portable camera to take picture for Brinell indentation. It can accurately recognize tghe indentation image in complicated background, measure the hardness value precisely and display on software interface. It realizes fast and simple, and reliable test process and the measurement of indentation image will not be affected by operator, surface roughness and other factors.

BrinScan can be used in lab, and also can be used in connect with Windows tablet and PC and laptop on site.

Features:

• Stylish appearence, portable and high definition USb camera, optimized ergonomic design, comfortable hand feeling

• Convenient operation, click auto-measuring button after finding the indentation, it will simultaneously display the indentation diameter and Brinell hardness value and do data record.
• Measurement accuracy of diameter can reach 0.001 mm, totally conform ASTM E-10, GBT 231, ISO-6506 and other standars.
• Available to setup tolerance (upper limit and lower limit)
• Available to realize hardness conversion according to ASTM-E140, DIN 50150, GBT-1172, etc.
• Available to setup auto-save image and corresponding measuring result files, generating reports.
• Available to setup and auto-save date, hardness parameters, hardness value, and storage loction of images.
• For images files and data files, opening saving, printing, modification, invoking can be carried out.
• Real-time statistics measuring data, display Max, Min, Ave, deviation, CP, CK, etc.

{pdf=https://physicaltestsolutions.com/images/documentos/PTS_-_Brinell_Hardness_Tester.pdf|100%|550|/google}

Features:

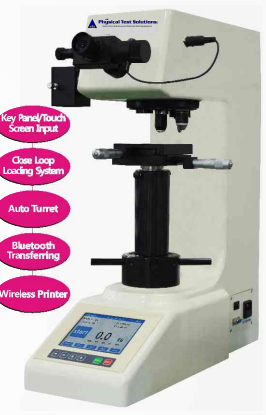

• Vicky VB-62.5 is equipped with Brinell and Vickers test methods, just replace indenter to do specific testing.
• Standard delivery comes with 5X and 10X objectives, all of them can do measurement, indenter and objective switches motorized.
• Available to preset dwell time, illumination brightness.
• Motorized turret, close loop loading system and touch screen, shows force selection, dwell time, hardness conversion, etc.
• Hardness result can be converted to HK, HBW, HRA, HRC, HV and superficial rockwell scales.
• Equipped with bluetooth module, the wireless data transfer to computer nad mini printer.
• In order to avoid operation error, optional measurement software MV-2005 and MB is a good choice.

{pdf=https://physicaltestsolutions.com/images/documentos/PTS_-_Brinell_Hardness_Tester.pdf|100%|550|/google}

Features:

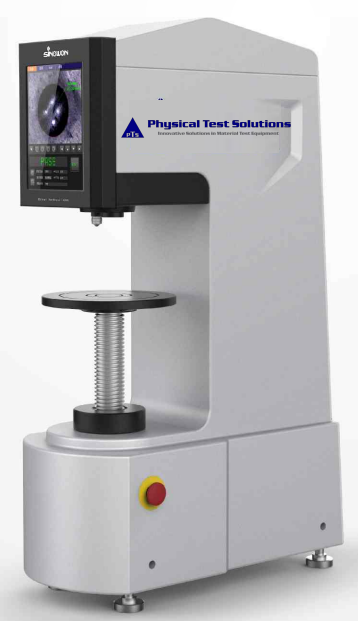

• Equip with OS Win 10, and already installed BrinScan V 3.0 Auto Brinell Measurement software.
• Apply vision measurement technology, one key operation, realize auto loading, dwell unluading and indentation measurement.
• AutoBrin AB-3000V can display data statics, hardness conversion, limitation setting, graph, measurement mode setting, etc.
• Loading by high accuracy force sensor, and can compensate force loss during loading by micro central processing unit.

Applications:

• Testing Brinell hardness of ferrous, non-ferrous metal and bearing alloy materials.
• Wide application range, especially used in precision measurement of parallel plane.
• What´s more, measurement of curved surface is stable and reliable.

{pdf=https://physicaltestsolutions.com/images/documentos/PTS_-_Brinell_Hardness_Tester.pdf|100%|550|/google}

Features:

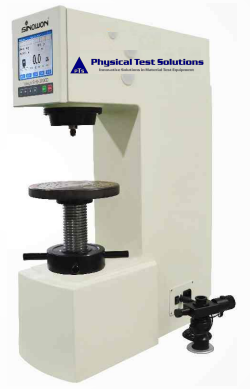

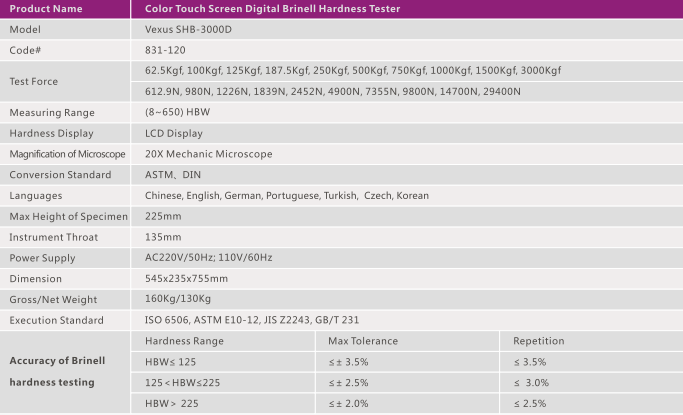

•    Vexus SHB-3000D differs from similar product which is the close loop loading system, key panel and touch screen double imput methods, bluetooth transfering technology and digital measurement indentation technology.
•    High accuracy close loop loading sensor replaces traditional weights loading method, to realize automatic loading, dewell and unloading, makes easier installation and better measurement accuracy.              　
•  Equipped with 5.2" color touch screen with innovate interface design, makes force selection, dewell time setting, scale conversion nad data reading, transfering, printing, more convenient and fast.
•    One touch operation of indentation measurement by high resolution objective, largely eliminate human error and avoid annoyance to check indentation comparision table.
•    Auto hardness conversion from Brinell scale HBW to HK, HV, HRA, HRB, HRC, superfcial rockwell scales, etc.
•    Equipped with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.
