Pico – for Productive Measuring.
A highly precise linear guide way system combined with highly dynamical engines make Pico the ideal measuring place in the production area.
The complete housing of guiding elements as well as a compensation of thermal fluctuations provide maximum protection against detrimental effects due to production.
An airconditioned room won’t be required.
Due to its compact construction, there will be a room for Pico nearly everywhere.
|

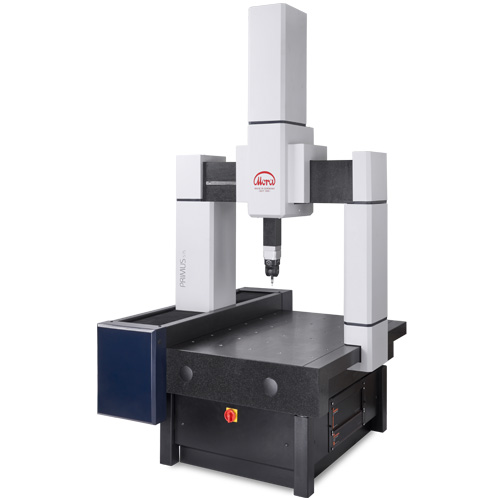

Our new bridge type measuring machine Primus is the result of intensive development efforts on the basis of most modern engineering technology.
A completely new machine conception in lightweight construction with improved highly dynamic engines is enabling a technically innovative measuring machine of the newest generation.
Primus is connecting higher accuracy with improved dynamic engines in a contemporary design.
The enclosed guide way components guarantee dirt-resistance together with a compact machine construction.
Depending on the required measurement, the machine type Primus is applied in standard or higher accuracy.
We offer the following options:
 ......................──────────.....................
.
.
Primus is connecting greater precision with improved dynamic engines in contemporary design.....
.
|
......... |
 ...................──────────.......................
.
Primus L.
Bridge type machine for
CNC operation. High speed of movement. Measuring system contactless for acquiring high precision data... |
......... |
 ......................──────────.....................
.
Primus GT.
GANTRY type machine for CNC operation. Granite with special rigidity
elevated. Natural stone guides high precision... .
|
{pdf=https://www.cientec.com.mx/images/PDF/Tecnologia_3D/MMC/Cientec-MORA-Layout.pdf|100%|600|native}
MORA measuring machine type:
PRIMUS GT 152515
GANTRY type machine for CNC operation.
Granite with special high stiffness.
High-accuracy natural stone guides.
Wear less precision air-cushion bearings guarantee smooth, low-Vibration movement.
High moving speed.
Non-contact measuring system for high precision data acquisition.
Measuring range:X 1 500 mm (width) Y 2 500 mm (length) Z 1 500 mm (height) |
................ |
Overall dimension:X 2 915 mm (width) Y 5 320 mm (length) Z 4 200 mm (height) |
Technical data:Weight: 8 000 kg Max. load of worktable Not applicable kg Velocity of spatial motion: 350 mm/s Acceleration 1380 mm/s2 |
................ |
Accuracy standard:MPEE = 4.2+L/200 µm MPEp = 4.2 µm L = measuring length in mm- Acceptance will be done according to ISO 10360-2 |
Temperature and air conditions:Temperature: 20ºC +/- 2ºC Compressed air clean and dry 6 bars mini |
................ |
Control system:CNC – 3 axes Including joystick multi functions Electrical power: 2500 VA 90 – 240 V +/- 10 % Frequency: 50/60 Hz |
MORA measuring machine type:
PRIMUS L 152515
Bridge type machine for CNC operation.
Granite with special high stiffness.
High-accuracy natural stone guides.
Wear less precision air-cushion bearings guarantee smooth, low-Vibration movement.
High moving speed.
Non-contact measuring system for high precision data acquisition.
X 1 500 mm (width)
Y 2 500 mm (length)
Z 1 500 mm (height)
X 2 745 mm (width)
Y 3 820 mm (length)
Z 4700 mm (height)
Weight: 11 000 kg
Max. load of worktable Not applicable kg
Velocity of spatial motion: 350 mm/s
Acceleration 1380 mm/s2
MPEE = 2.9+L/300 µm
MPEp = 2.9 µm
L = measuring length in mm- Acceptance will be done according to ISO 10360-2
Temperature: 20ºC +/- 2ºC
Compressed air clean and dry 6 bars mini
CNC – 3 axes
Including joystick multi functions
Electrical power: 2500 VA 90 – 240 V +/- 10 %
Frequency: 50/60 Hz
Our new bridge type measuring machine Primus is the result of intensive development efforts on the basis of most modern engineering technology.
A completely new machine conception in lightweight construction with improved highly dynamic engines is enabling a technically innovative measuring machine of the newest generation.
Primus is connecting higher accuracy with improved dynamic engines in a contemporary design.
The enclosed guide way components guarantee dirt-resistance together with a compact machine construction.
Depending on the required measurement, the machine type Primus is applied in standard or higher accuracy.
{pdf=https://www.cientec.com.mx/images/PDF/Tecnologia_3D/MMC/Cientec-MORA-Layout.pdf|100%|600|native}
